Basic construction of Air Conditioner

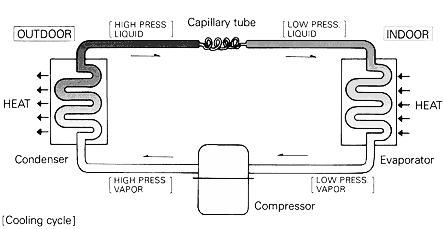

The refrigerant Freon 22 repeats absorption and radiation of heat (evaporation/condensation) in a cycle shown below.

Air Conditioner is Constructed with The Following 4 Main Sections.

1) Refrigerant circuit components:
Circulates refrigerant for absorption and radiation of heat. (Comp. evaporator, condenser, capillary tube etc.).

2) Fan section:
Cool air distribution (indoor), radiation of heat (outdoor) (Fan, fan motor, etc) in cooling mode

3) Electrical parts:
Controls for A/C (remote controller, printed circuit boards, wiring, etc.)

4) Others:
Casing, air filter, etc.
